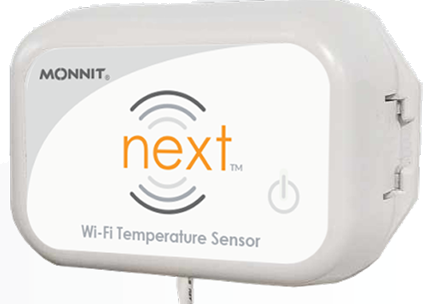

TS-ST-NDS

The Next Temperature Sensor measures temperature based on a user-configurable Heartbeat time interval. When measuring, the sensor momentarily energizes a thermistor in series with a precision resistor.
This produces a voltage directly proportional to the temperature of the thermistor. The sensor converts the analog voltage signal to a digital value and calculates the temperature. This measurement is then sent to the iMonnit Software through Wi-Fi.

Request a quote?

Features

  • Wireless range: 125 feet through five walls or 500-ft line of sight
  • Power: Two replaceable 1.5V AA batteries (included)
  • Communications: 802.11 b (2.412-2.484 GHz)
  • Wi-Fi Security: OPEN, WPA, WPA2, WPA3
  • Wi-Fi Provisioning: Bluetooth® via app
  • Sensor data available in iMonnit after Wi-Fi is successfully provisioned
  • Best-in-class power management for longer battery life
  • Data logs up to 4096 readings if the Wi-Fi connection is lost (non-volatile flash, persists through the power cycle):
    • 10-minute Heartbeats = ~ 22 days
    • 2-hour Heartbeats = ~ 266 days
  • Over-the-air updates (future-proof)
  • Power/Utility Button: Powers the sensor on/off, triggers data transmission, change operating mode, etc
  • LED Indicator: Shows status and activity
  • Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and set alerts to be sent via text and email
